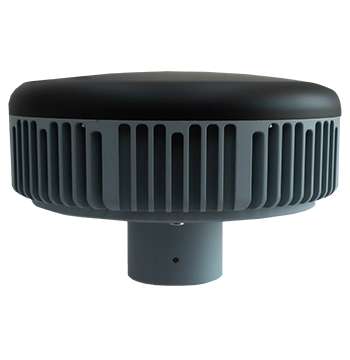

TUALAJ 8300-D GPS/GNSS ANTI-JAM CRPA SYSTEM

TUALAJ 8300-D with an 8-array CRPA antenna, the system can assure the normal operation of GNSS receiver in presence of multiple jamming sources.

8 Element CRPA Antenna Array

8-array CRPA antenna GPS/GNSS anti-jamming system

General Description

TUALCOM Anti-Jam GNSS CRPA System supports critical missions by providing jam free GNSS signals.

The system eliminates interference by applying novel beamforming techniques. With an 8-array CRPA antenna, the system can assure the normal operation of GNSS receiver in presence of multiple jamming sources.

TUALCOM Anti-Jam GNSS CRPA System can be employed using various configurations and operates with civil and military GPS receivers for the land, sea, air platforms (including unmanned aerial systems) and fixed installations.

The product has an embedded GNSS receiver that supports all satellite constellations. Wide bandwidth of the system also enables the SBAS signals to GNSS receiver.

The system can be provided with various types of antennas. Physical solutions for further suppression performance such as elevation masking can also be provided as antenna option.

Application Areas

Armored
Vehicles

Naval Platforms, Coast Guard Platforms

World's Smallest Anti Jam System, TUALCOM Anti-Jam GNSS CRPA System supports critical missions by providing jam free GNSS signals.

World's Smallest Anti Jam System

With an 8-array CRPA antenna, the system can assure the normal operation of GNSS receiver in presence of multiple jamming sources.

System can be employed using various configurations and operates with civil and military GPS receivers for the land, sea, air platforms and fixed installations.



The module can be provided with a variety of antennas and physical solutions for suppression performance such as elevation masking.



Benefits

  • Immediate availability for urgent operational needs
  • Simple assembly means easy to install or retrofit
  • Compatible with all types of external GPS receivers and vehicle navigation systems
  • Minimal integration training required
  • Light Weight
  • Ultra Compact Size
  • Superior Suppression Performance
  • Embedded GNSS Receiver Option
  • Integrates easily into new or legacy platforms
  • Assured PNT
TUALAJ 8300-D with an 8-array CRPA antenna, the system can assure the normal operation of GNSS receiver in presence of multiple jamming sources.
Dimensions (cm) Diameter: Ø25  Height: 9.8
Weight (g) 4150
Power Consumption (w) < 24 W
Antenna Array 8 Array CRPA Antenna
Simultaneous Independent Nulling 7
Simultaneous Active Bands GPS L1,
GPS L2 GLONASS G1,
GLONASS G2,
GALILEO E1,
BEIDOU B1C SBAS
Nominal Wideband Suppression >50 dB
Data Interfaces Serial
Bandwidth Up to 30 Mhz (depends to selected band option)
Connectors D38999 standards military connectors
TNC Jack
Operating Voltage 12-32 Vdc
Operating Temperature -40 °C to +85 °C
Internal GNSS Receiver BeiDou (B1C),
Galileo (E1,E5a),
SBAS GLONASS (L1,L2),
GPS (L1,L2),
QZSS (L1)
Internal GNSS Tracking Sensitivity -164 dBm
RTCM Support Yes
Environmental Tests  MIL-STD-810G
EMI / EMC MIL-STD-461F
