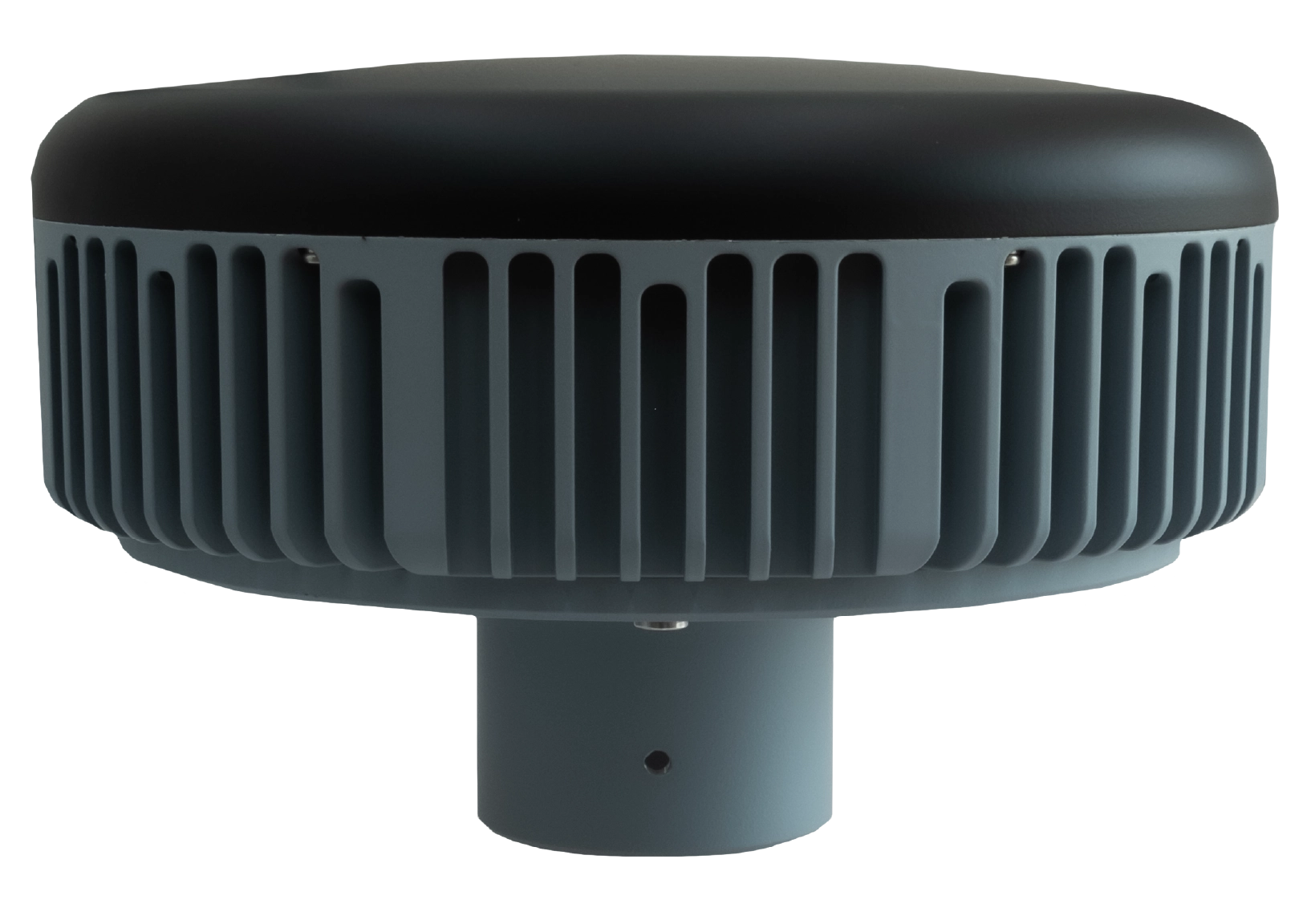

16 Element CRPA Antenna Array
16-array CRPA antenna GPS/GNSS anti-jamming system
General Description
TUALCOM Anti-Jam GNSS CRPA Systems support critical missions by providing jam free GNSS signals and resilient PNT.
With its 16-element CRPA antenna, state-of-art digital controller and novel beamforming techniques TUALAJ 16300-D eliminates interference to ensure uninterrupted operation of GNSS receivers in presence of up to 15 jamming sources in 3 different frequency bands. The set of protected active bands is pre-selectable amongst available options.
TUALAJ 16300-D also offers embedded high performance GNSS receiver as an option and allows SBAS signals to be utilized for increased accuracy and reliability.
Supporting simultaneous GPS L1, GALILEO E1, BEIDOU B1C, SBAS, and either GPS L2 or GLONASS G1, the system can perform 40 dB wideband jamming suppression.
Thanks to its powerfull digital beamforming algorithms TUALAJ 16300-D can perform 50 dB widedband jamming suppression at any directions.
- Protection against 15 jammers
- Easy to install
- Plug and play integration into new or legacy platforms
- Immediate availability for urgent operational needs
- Compatible with all types of external GPS receivers and vehicle navigation systems, including M Code
- Compact Size
- Superior Suppression Performance
- Embedded GNSS Receiver Option
- Compatibility with military standards
- Resilient PNT
| Dimensions (cm) | 17x10x2.8 |
| Weight (g) | 760 |
| Power Consumption (w) | < 25 W |
| Antenna Array | 16 Array CRPA Antenna |
| Simultaneous Independent Nulling | 15 |
| Simultaneous Protecded Active Bands |
Option 1: GPS (L1, L2), GLONASS (G1, G2), GALILEO E1, BEIDOU B1, SBAS Option 2: GPS (L1, L2, L5), GALILEO (E1, E5a, E5b), BEIDOU B1, SBAS |
| Nominal Wideband Suppression | >50 dB |
| Data Interfaces |
Serial RS-485 Serial RS-232 |
| Connectors |
17 SMA Jack 1 x Micro-D 25-pin Socket |
| Operating Voltage | 12-32 Vdc |
| Embedded GNSS Receiver (Optional) | GPS (L1, L2), GLONASS (G1, G2), Galileo (E1, E5b), BEIDOU (B1I), SBAS, QZSS (L1), RTCM Support |
| Environmental Tests | MIL-STD-810G |
| EMI / EMC | MIL-STD-461F |
| Operating Temperature | -40 °C to +85 °C |
